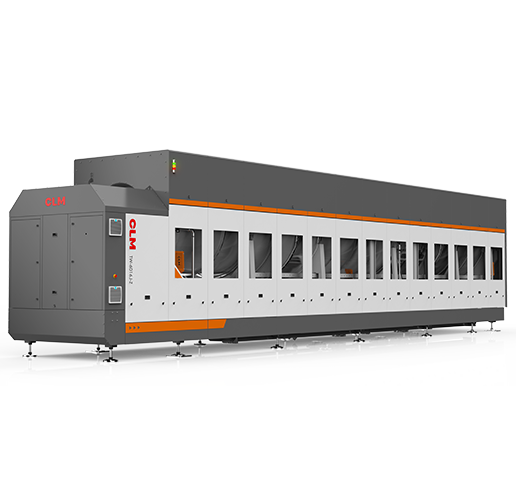

TW-Y Hospital series 60 kg tunnel washers

Product overview

High cleanliness: meet the washing quality of five-star hotel.Low damage rate: The pressing machine is a heavy frame structure, with high strength and lower damage rate.High efficiency: 1.8 tons/hour washing volume (60 kgx16 compartments).

Application industry

Hotel Laundry

Hospital Laundry

Product Video

Technical Characteristics

Inner Drum Material
CLM tunnel washers inner drum is made of 4mm high quality 304 stainless steel, and the drums connecting flange is made of 25mm stainless steel

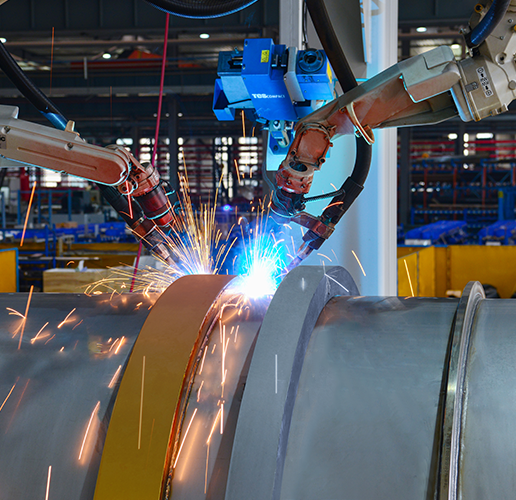

Precision Machining
After the tunnel washers inner drums are welded together, after precisely processed by lathes, the entire drums beating is controlled within 30 silk
Sealing property
The CLM tunnel washers have good sealing performance, effectively guarantees that no water leakage, low running noise,and stable
Trasnfer Type
Bottom Transfer,not easy to block and damage the linen
H-type steel heavy structure design
The bottom frame of the CLM tunnel washers is designed with a 200mm thickness H-type heavy structure steel.Not easy to deform during the transportation and the strength is good
Three points support
The CLM tunnel washers adopts a three-point support transmission structure design, which effectively avoids the possibility of falling deformation in the middle position during long-term load operation.Because the 16 compartments tunnel washers total length is nearly 14 meters. If use two points suppor, it will have the deformation on the middle position of whole structure in the transportation and long term load operation
Hot dip galvanized treatment
The entire bottom frame is treated with hot-dip galvanized treatment, and the anticorrosive effect is good to ensure that it will never rust
Special Design
CLM tunnel washers main motor is set behind the electrical box, and the electrical box can be rotated and opened as a whole. Special design, which is convenient for main motor CLM laundry main cage main motor is set behind the electrical box, and the electrical box can be rotated and opened as a whole. Unique design, which is convenient for main motor maintenance and further maintenance
Circle water filter device
The CLM tunnel washers filtering device is standard configuration. Effectively filter the lint of circulating water, ensure the clean use of circulating water, and ensure the quality of washing

Foam and lint overflow device
The floating objects during the rinsing process are discharged through the overflow port, so that the rinsing water is more clean and the linen cleanliness is higher
potch
Each compartment of rinsing has independent water inlet and drain valves

High Cleanliness

CLM洗衣籠密封性能性好，有效保證不漏水、運行噪音低

High Cleanliness

裝料口設置在地面70CM高的距離，實現輕松裝料，人性化設計。

Energy Efficiency

所有電器、氣動元件均采用德國、日本品牌。

Good StabilityGood Stability

洗衣籠內筒采用4mm厚度不銹鋼，比歐洲其他品牌材料更厚更堅固。

ZD-60 Loading Conveyor

TW-J Hotel Series 80Kg tunnel washers

YT-H Heavy 60kg Press

CS-602 Shuttle Conveyor

GHG-120Z Series Tumbler Dryer

Lint Collector

GZB-S Feeder with Automatic Double-face automatic Brush

CYP-R Gas Heating Chest Ironer

CYP-Z Steam Heating Chest Ironer

MZD-2300D Series Plate Towel Folder

ZD Series Folder

Steam-Heated Roller and Chest Ironer

Hospital Linen Laundry Sorting System

Hotel Linen Laundry Sorting System

Back Bag System

Front Bags

Garments Loading Machine

Tunnel Finisher

Uniform Folder

Coin-Operated Single Tumble Dryer

Coin-Operated Stacked Tumble Dryer

40/60/100kg Series Dryers

15/20/25kg Standard Washer

40/60/100/120kg Washer

Coin-Operated Softmount Washer

TW-Y Hospital series 60 kg tunnel washers

Product overview

Application industry

Technical Characteristics

Inner Drum Material

CLM tunnel washers inner drum is made of 4mm high quality 304 stainless steel, and the drums connecting flange is made of 25mm stainless steel

Precision Machining

After the tunnel washers inner drums are welded together, after precisely processed by lathes, the entire drums beating is controlled within 30 silk

Sealing property

The CLM tunnel washers have good sealing performance, effectively guarantees that no water leakage, low running noise,and stable

Trasnfer Type

Bottom Transfer,not easy to block and damage the linen

H-type steel heavy structure design

The bottom frame of the CLM tunnel washers is designed with a 200mm thickness H-type heavy structure steel.Not easy to deform during the transportation and the strength is good

Three points support

Hot dip galvanized treatment

The entire bottom frame is treated with hot-dip galvanized treatment, and the anticorrosive effect is good to ensure that it will never rust

Special Design

Circle water filter device

The CLM tunnel washers filtering device is standard configuration. Effectively filter the lint of circulating water, ensure the clean use of circulating water, and ensure the quality of washing

Foam and lint overflow device

The floating objects during the rinsing process are discharged through the overflow port, so that the rinsing water is more clean and the linen cleanliness is higher

potch

Each compartment of rinsing has independent water inlet and drain valves

High Cleanliness

High Cleanliness

Energy Efficiency

Good StabilityGood Stability

Technical Parameter
