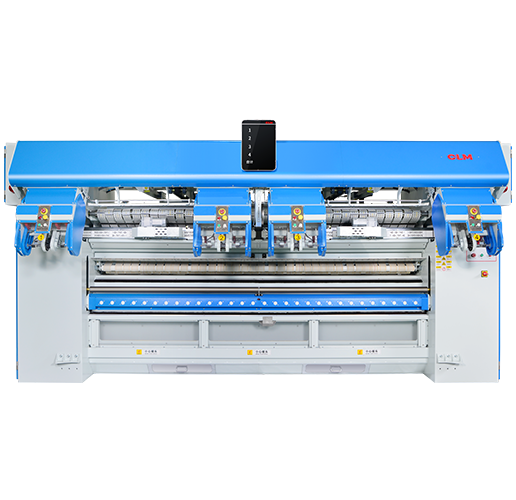

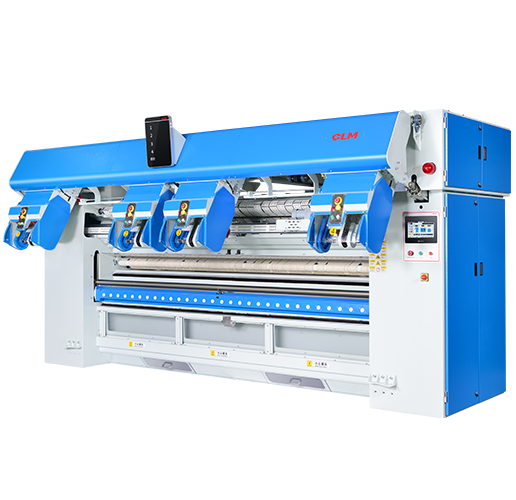

GZB Series High Speed Automatic Feeder

Product overview

Combine with CLM high speed ironer and folder to be a complete super speed ironer line, which can deal with 1200 pieces bed sheets

Application industry

Hotel Laundry

Hospital Laundry

Product Video

Technical Characteristics

Statistical function
Each station has the statistical function of investment, and accurately measures the number of sheets, which is convenient for operators to manage
Software Communication
CLM high speed folder and CLM high speed feeder, high speed ironer can achieve program linkage function
Air duct structure
The special air duct structure design, the sheets which be sucked into the box can shaking by air blowing to improve the flatness
the maximum feeding size
Huge size sheet can smoothly suction into the suction box and the maximum sheet size can reach 3300x3500mm
Suction Fan Power
The minimum power of the suction fan is 750W, and it can also be equipped with 1.5kW and 2.2KW fan
Fast and Efficient
4 stations feeding sheets at the same time,each station has two sets of feeding clamps, the working efficiency is very high
Manual Feeding Function
Designed with manual feeding function, which can realize the feeding of bed sheet, duvet cover,table cloth,pillowcase, small linen,etc
Heavy Sheets anti-drop function
Heavy sheets anti-drop function to smoothly feeding large and heavy sheets
Guide Rail Design
High SpeedThe guide rail mold is squeezed and molded, the accuracy is high, the surface is treated with special wear resistance, the connecting clip runs smoothly on the track, and the speed is fast

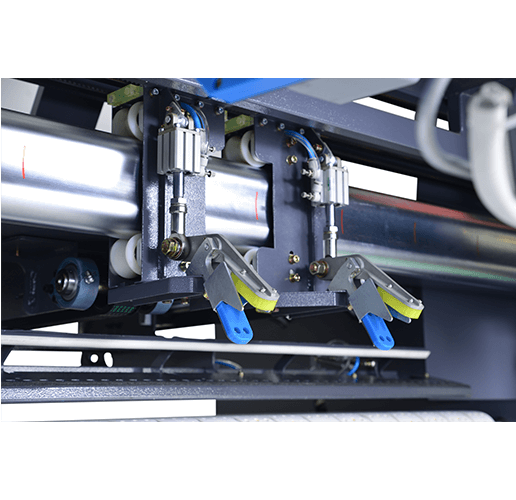

Spreading Clamps
The wheels of spreading clamps use special imported material which ensure long service life
Frame Structure
The frame structure of the CLM automatic feeder is welded as a whole, and each long axis is precisely processed
Shuttle Plate
The shuttle plate is controlled by a servo motor, with high accuracy and fast speed.Not ong feeding bed sheet at high speed, but also can feeding duvet cover at low speed
Feeding Speed
Maximum Feeding Speed can reach 60m/min, each hour can feeding 1200 pcs bed sheets
Quality Ensurance.Quality Ensurance
All electrical components,pneumatic components,bearing,motor,etc all use Japanese, European famous brands

PLC Control System
S.iron uses a modern PLC control system and a 10 -inch color touch screen. Programming and operations are easy to get started. It can fully control the ironing parameters, including ironing speed,chest temperature, and air cylinder pressure. The system provides up to 100 custom ironing programs to meet the ironing requirements of special linen
Chest Position Correction System
Pressure is the key point to ensuring the continous good quality ironing performance. This machine uses adjustable pressure to meet the special ironing needs of different types of linen. At the same time, the chest calibration system ensures that the pressure on the surface of linen is uniform. According to different types of linen, the ironer can always ensure the best ironing quality
Insulation Design
The ironing machine uses the thermal insulation board for insulation construction, reducing the loss of heat while greatly improving the heat utilization and production efficiency, and creating a comfortable working environment. This good insulation material ensure the motor and electrical components work at a safe temperature, which greatly extends the service life of the motor and accessories
Direct Motor Drive
The steam heating chest is directly driven by an independent motor, without a belt or other dangerous power transmission device, each motor with a inverter,and the speed of each roller is controlled by an advanced electronic method
Maintenance-free
No belt, chain wheel, chain, and lubricating fat directly eliminate the occurrence of maintenance and failure, so the CLM-TEXFINITY chest driving unit has the characteristics of free adjustment and maintenance-free
Powerful Moisture Suction System
S.iron has a powerful, modular moisture suction system, which is closely related to the evaporation of water, so you need to install an independent suction motor on each roller. It has big impact on the ironing speed of ironer
Belt Tensioner
The ironing belts use the hinge type tensioner, which can be installed in front or behind the steam vents of ironer, which is convenient for maintenance on the top of the ironer. You can also choose an automatic mobile system (ATLAS) to eliminate the dents of belts on linen and improve the quality of ironing. The belts tensioner can be used with the scraper system installed on the last roll to completely eliminate the dents on the linen
Sheets corners flattening device
As an option, we set up a device for flattening the corners of sheets at the end of the entrance of the feeding platform to perfectly eliminate the wrinkles

ZD-60 Loading Conveyor

TW-J Hotel Series 80Kg tunnel washers

YT-H Heavy 60kg Press

CS-602 Shuttle Conveyor

GHG-120Z Series Tumbler Dryer

Lint Collector

GZB-S Feeder with Automatic Double-face automatic Brush

CYP-R Gas Heating Chest Ironer

CYP-Z Steam Heating Chest Ironer

MZD-2300D Series Plate Towel Folder

ZD Series Folder

Steam-Heated Roller and Chest Ironer

Hospital Linen Laundry Sorting System

Hotel Linen Laundry Sorting System

Back Bag System

Front Bags

Garments Loading Machine

Tunnel Finisher

Uniform Folder

Coin-Operated Single Tumble Dryer

Coin-Operated Stacked Tumble Dryer

40/60/100kg Series Dryers

15/20/25kg Standard Washer

40/60/100/120kg Washer

Coin-Operated Softmount Washer

GZB Series High Speed Automatic Feeder

Product overview

Application industry

Technical Characteristics

Statistical function

Each station has the statistical function of investment, and accurately measures the number of sheets, which is convenient for operators to manage

Software Communication

CLM high speed folder and CLM high speed feeder, high speed ironer can achieve program linkage function

Air duct structure

The special air duct structure design, the sheets which be sucked into the box can shaking by air blowing to improve the flatness

the maximum feeding size

Huge size sheet can smoothly suction into the suction box and the maximum sheet size can reach 3300x3500mm

Suction Fan Power

The minimum power of the suction fan is 750W, and it can also be equipped with 1.5kW and 2.2KW fan

Fast and Efficient

4 stations feeding sheets at the same time,each station has two sets of feeding clamps, the working efficiency is very high

Manual Feeding Function

Designed with manual feeding function, which can realize the feeding of bed sheet, duvet cover,table cloth,pillowcase, small linen,etc

Heavy Sheets anti-drop function

Heavy sheets anti-drop function to smoothly feeding large and heavy sheets

Guide Rail Design

High SpeedThe guide rail mold is squeezed and molded, the accuracy is high, the surface is treated with special wear resistance, the connecting clip runs smoothly on the track, and the speed is fast

Spreading Clamps

The wheels of spreading clamps use special imported material which ensure long service life

Frame Structure

The frame structure of the CLM automatic feeder is welded as a whole, and each long axis is precisely processed

Shuttle Plate

The shuttle plate is controlled by a servo motor, with high accuracy and fast speed.Not ong feeding bed sheet at high speed, but also can feeding duvet cover at low speed

Feeding Speed

Maximum Feeding Speed can reach 60m/min, each hour can feeding 1200 pcs bed sheets

Quality Ensurance.Quality Ensurance

All electrical components,pneumatic components,bearing,motor,etc all use Japanese, European famous brands

PLC Control System

Chest Position Correction System

Insulation Design

Direct Motor Drive

The steam heating chest is directly driven by an independent motor, without a belt or other dangerous power transmission device, each motor with a inverter,and the speed of each roller is controlled by an advanced electronic method

Maintenance-free

No belt, chain wheel, chain, and lubricating fat directly eliminate the occurrence of maintenance and failure, so the CLM-TEXFINITY chest driving unit has the characteristics of free adjustment and maintenance-free

Powerful Moisture Suction System

S.iron has a powerful, modular moisture suction system, which is closely related to the evaporation of water, so you need to install an independent suction motor on each roller. It has big impact on the ironing speed of ironer

Belt Tensioner

Sheets corners flattening device

As an option, we set up a device for flattening the corners of sheets at the end of the entrance of the feeding platform to perfectly eliminate the wrinkles

Technical Parameter

Get in touch with us

If you have any questions about our products, please feel free to contact us at any time. We will reply to you as soon as possible.
